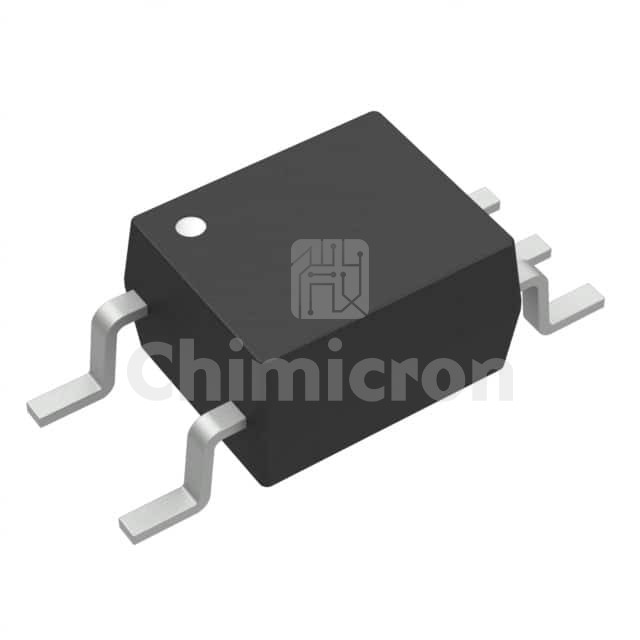

HCPL-M456#500
Manufacturer: Broadcom
Description: OPTOISO 3.75KV OPN COLLECTOR 5SO
Category : Isolators
Family: Optoisolators - Logic Output
Series: -
In Stock:410400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCPL-M456#500 Broadcom at chimicron.com. We have 410400 pieces of HCPL-M456#500 in stock available now. Submit an inquiry for HCPL-M456#500 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusDiscontinued at Digi-Key
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)15kV/µs
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel15 mA
Data Rate-
Propagation Delay tpLH / tpHL (Max)550ns, 400ns
Rise / Fall Time (Typ)-
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)25mA
Voltage - Supply4.5V ~ 30V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package5-SO
