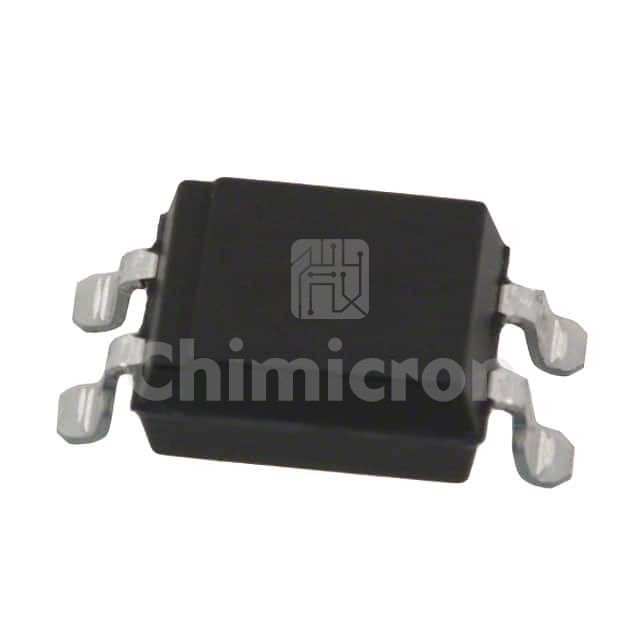

PC817X1NIP0F
Manufacturer: Socle Technology Corporation
Description: OPTOISOLATOR 5KV TRANS 4ESOP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:5250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PC817X1NIP0F Socle Technology Corporation at chimicron.com. We have 5250 pieces of PC817X1NIP0F in stock available now. Submit an inquiry for PC817X1NIP0F or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusDiscontinued at Digi-Key
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)80% @ 5mA
Current Transfer Ratio (Max)160% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)200mV
Operating Temperature-30°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SMD
