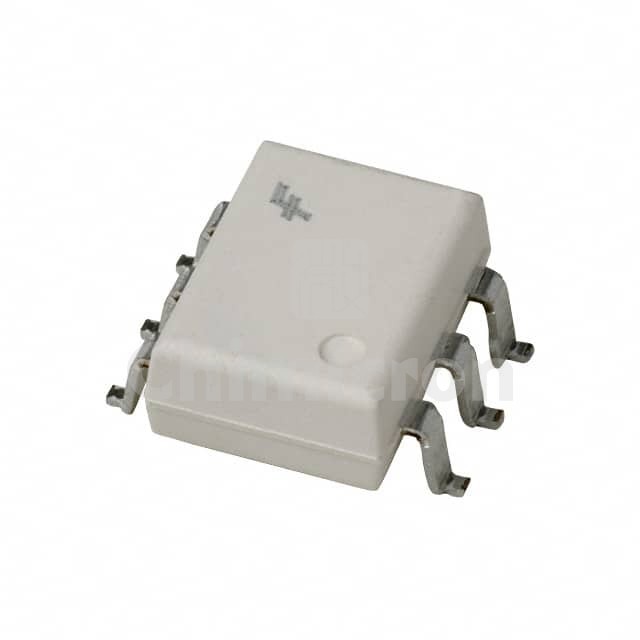

H11B1SD
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: OPTOISO 5.3KV DARL W/BASE 6SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:1000000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the H11B1SD Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 1000000 pieces of H11B1SD in stock available now. Submit an inquiry for H11B1SD or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Number of Channels1
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)500% @ 1mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)25µs, 18µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington with Base
Voltage - Output (Max)25V
Current - Output / Channel-
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)100 mA
Vce Saturation (Max)1V
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
