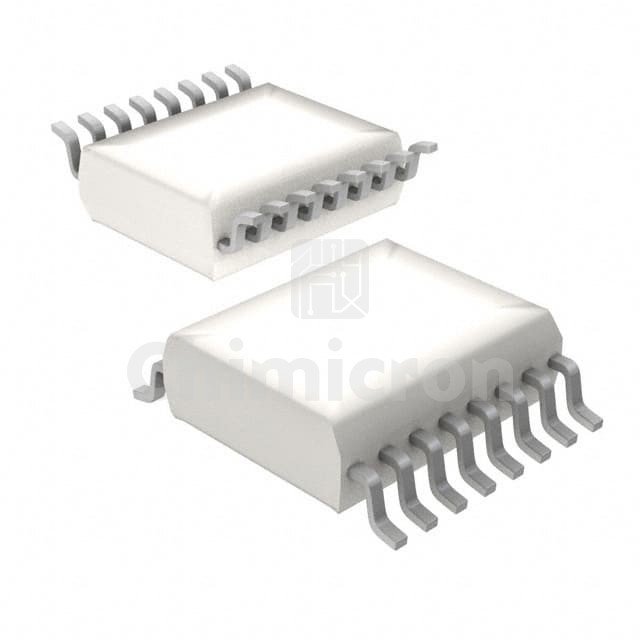

TLP281-4(GB-TP,J,F
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: OPTOISO 2.5KV 4CH TRANS 16-SOP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:3150
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP281-4(GB-TP,J,F Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 3150 pieces of TLP281-4(GB-TP,J,F in stock available now. Submit an inquiry for TLP281-4(GB-TP,J,F or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Number of Channels4
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)100% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)3µs, 3µs
Rise / Fall Time (Typ)2µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.173", 4.40mm Width)
Supplier Device Package16-SOP
