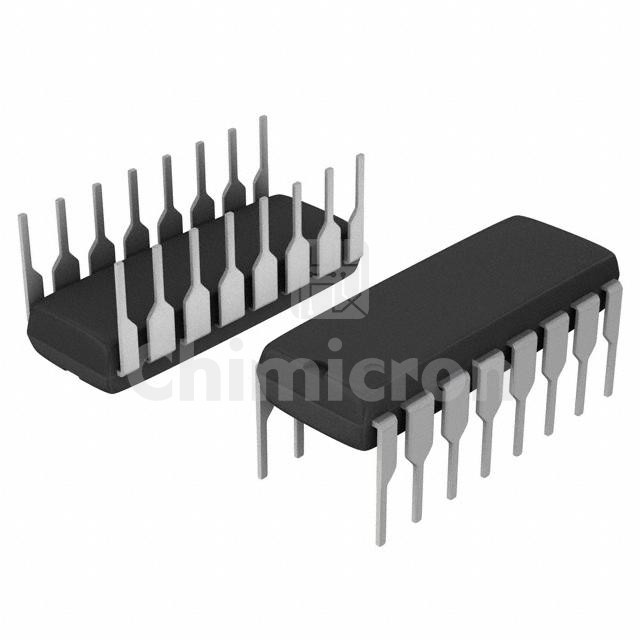

PS2503-4
Manufacturer: CEL (California Eastern Laboratories)
Description: OPTOISOLATOR 5KV 4CH TRANS 16DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: NEPOC
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PS2503-4 CEL (California Eastern Laboratories) at chimicron.com. We have 300000 pieces of PS2503-4 in stock available now. Submit an inquiry for PS2503-4 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNEPOC
PackageTube
Part StatusObsolete
Number of Channels4
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)100% @ 1mA
Current Transfer Ratio (Max)400% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)20µs, 30µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)40V
Current - Output / Channel30mA
Voltage - Forward (Vf) (Typ)1.1V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)250mV
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-DIP
