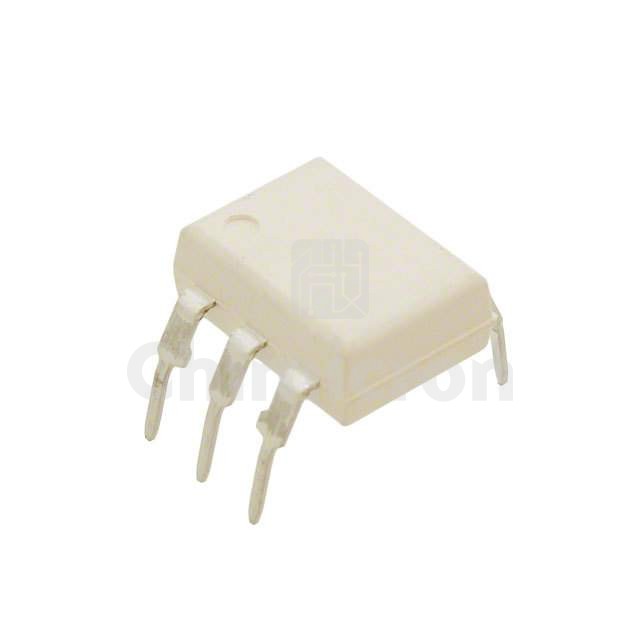

CNX82A300W
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: OPTOISOLATOR 5.3KV TRANS 6-DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:240000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CNX82A300W Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 240000 pieces of CNX82A300W in stock available now. Submit an inquiry for CNX82A300W or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Number of Channels1
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)40% @ 10mA
Current Transfer Ratio (Max)250% @ 10mA
Turn On / Turn Off Time (Typ)3µs, 3µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)50V
Current - Output / Channel100mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)100 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.400", 10.16mm)
Supplier Device Package6-DIP
