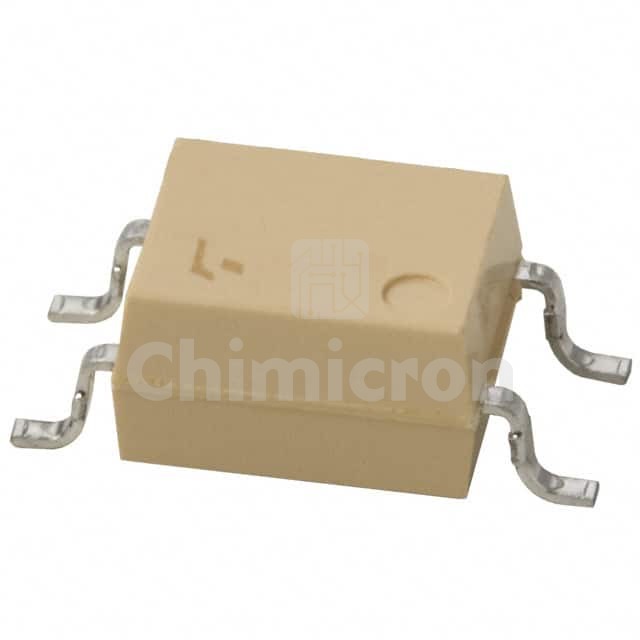

TLP124(TPR,F)
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: OPTOISOLTR 3.75KV TRANS 6-MFSOP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP124(TPR,F) Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 300000 pieces of TLP124(TPR,F) in stock available now. Submit an inquiry for TLP124(TPR,F) or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)100% @ 1mA
Current Transfer Ratio (Max)1200% @ 1mA
Turn On / Turn Off Time (Typ)10µs, 8µs
Rise / Fall Time (Typ)8µs, 8µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD (4 Leads), Gull Wing
Supplier Device Package6-MFSOP, 4 Lead
