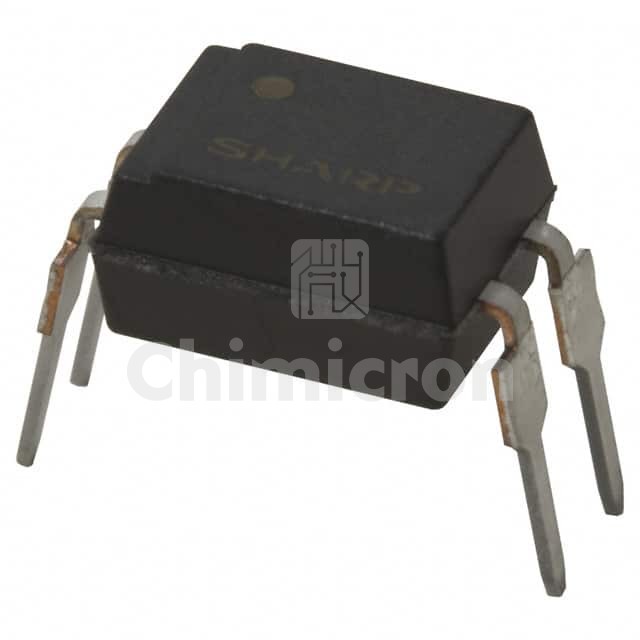

PC817X2CSZ9F
Manufacturer: Socle Technology Corporation
Description: PHOTOCOUPLER
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: PC817
In Stock:150
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PC817X2CSZ9F Socle Technology Corporation at chimicron.com. We have 150 pieces of PC817X2CSZ9F in stock available now. Submit an inquiry for PC817X2CSZ9F or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPC817
PackageTube
Part StatusObsolete
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)50% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)200mV
Operating Temperature-30°C ~ 100°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.300", 7.62mm)
Supplier Device Package4-DIP
