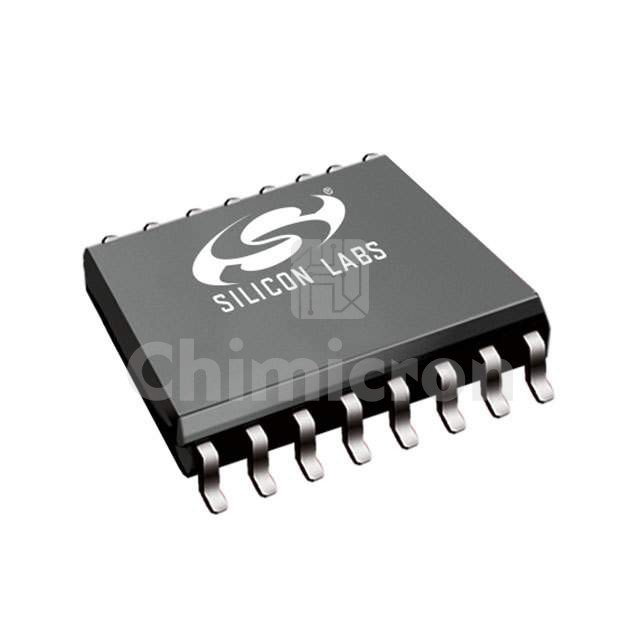

SI8232BD-B-IS
Manufacturer: Silicon Labs
Description: DGTL ISO 5KV 2CH GATE DVR 16SOIC
Category : Isolators
Family: Isolators - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:10000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SI8232BD-B-IS Silicon Labs at chimicron.com. We have 10000 pieces of SI8232BD-B-IS in stock available now. Submit an inquiry for SI8232BD-B-IS or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTube
Part StatusObsolete
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)60ns, 60ns
Pulse Width Distortion (Max)5.6ns
Rise / Fall Time (Typ)20ns, 20ns (Max)
Current - Output High, Low250mA, 500mA
Current - Peak Output500mA
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply9.4V ~ 24V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SOIC
Approval AgencyCQC, CSA, UR, VDE
