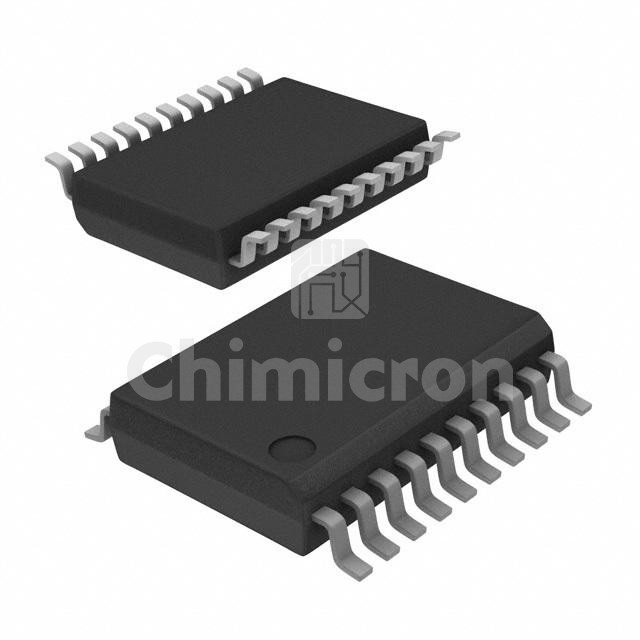

BM6104FV-CE2
Manufacturer: ROHM Semiconductor
Description: DGTL ISO 2.5KV GATE DRVR 20SSOP
Category : Isolators
Family: Isolators - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:94500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BM6104FV-CE2 ROHM Semiconductor at chimicron.com. We have 94500 pieces of BM6104FV-CE2 in stock available now. Submit an inquiry for BM6104FV-CE2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)100kV/µs
Propagation Delay tpLH / tpHL (Max)150ns, 150ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low-
Current - Peak Output5A, 1A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply10V ~ 24V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case20-SSOP (0.240", 6.10mm Width)
Supplier Device Package20-SSOP-BW
Approval AgencyUR
