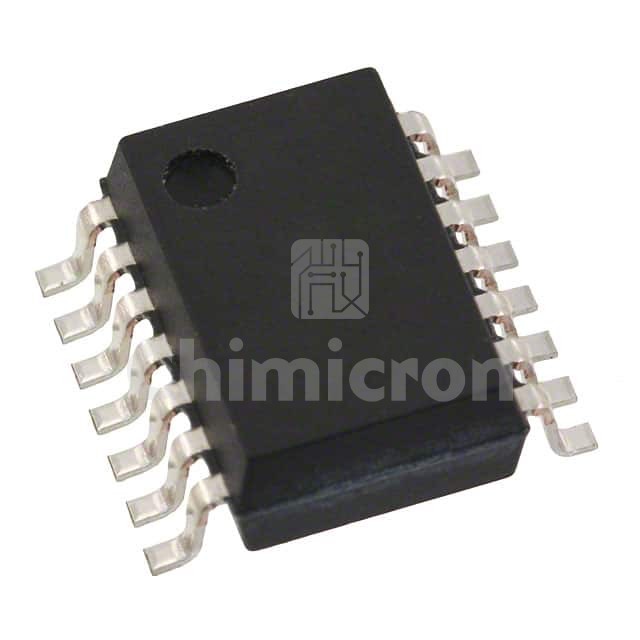

PC929J00000F
Manufacturer: Sharp Microelectronics
Description: OPTOISO 4KV 1CH GATE DRVR 14SMT
Category : Isolators
Family: Isolators - Gate Drivers
Series: OPIC™
In Stock:2625
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PC929J00000F Sharp Microelectronics at chimicron.com. We have 2625 pieces of PC929J00000F in stock available now. Submit an inquiry for PC929J00000F or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOPIC™
PackageTube
Part StatusObsolete
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation4000Vrms
Common Mode Transient Immunity (Min)1.5kV/µs
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)200ns, 200ns
Current - Output High, Low-
Current - Peak Output400mA
Voltage - Forward (Vf) (Typ)1.6V
Current - DC Forward (If) (Max)20 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-25°C ~ 80°C
Mounting TypeSurface Mount
Package / Case14-SOIC (0.256", 6.50mm Width)
Supplier Device Package14-SMT
Approval AgencyUR
