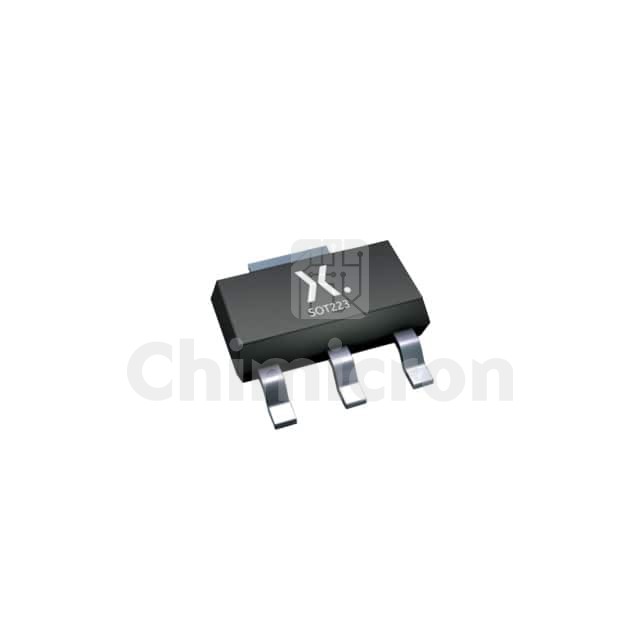

BSP320SH6433XTMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 2.9A SOT223
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: SIPMOS®
In Stock:3951
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSP320SH6433XTMA1 IR (Infineon Technologies) at chimicron.com. We have 3951 pieces of BSP320SH6433XTMA1 in stock available now. Submit an inquiry for BSP320SH6433XTMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSIPMOS®
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C2.9A (Tj)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs120mOhm @ 2.9A, 10V
Vgs(th) (Max) @ Id4V @ 20µA
Gate Charge (Qg) (Max) @ Vgs9.3 nC @ 7 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds340 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.8W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
