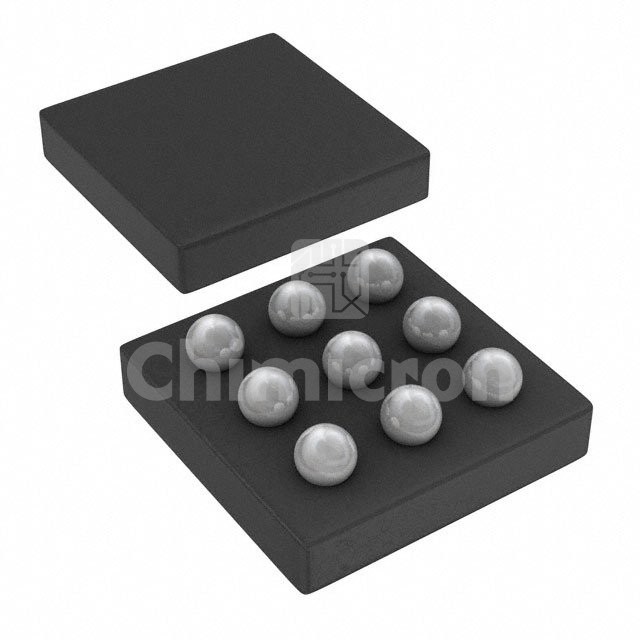

CSD22202W15
Manufacturer: Texas
Description: MOSFET P-CH 8V 10A 9DSBGA
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:94500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD22202W15 Texas at chimicron.com. We have 94500 pieces of CSD22202W15 in stock available now. Submit an inquiry for CSD22202W15 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)8 V
Current - Continuous Drain (Id) @ 25°C10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs12.2mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.4 nC @ 4.5 V
Vgs (Max)-6V
Input Capacitance (Ciss) (Max) @ Vds1390 pF @ 4 V
FET Feature-
Power Dissipation (Max)1.5W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package9-DSBGA
Package / Case9-UFBGA, DSBGA
