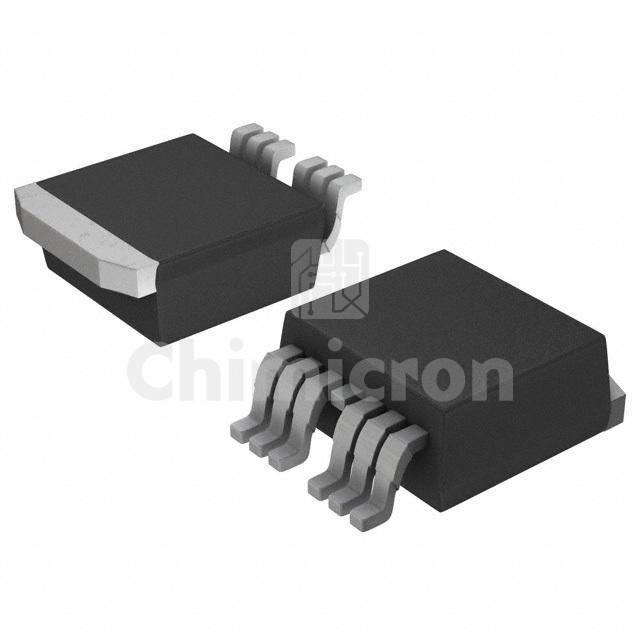

IRLS3036TRL7PP
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 240A D2PAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:30240
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRLS3036TRL7PP IR (Infineon Technologies) at chimicron.com. We have 30240 pieces of IRLS3036TRL7PP in stock available now. Submit an inquiry for IRLS3036TRL7PP or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.9mOhm @ 180A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs160 nC @ 4.5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds11270 pF @ 50 V
FET Feature-
Power Dissipation (Max)380W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK (7-Lead)
Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB
