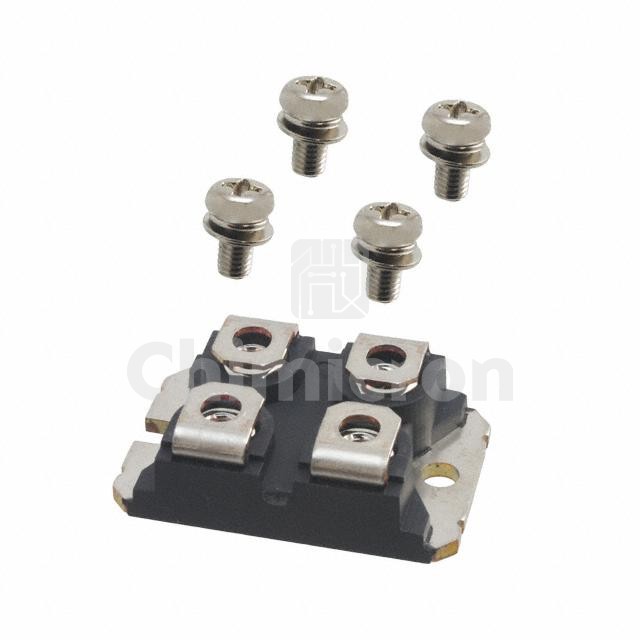

IXTN22N100L
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 1000V 22A SOT227B
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:1050
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXTN22N100L Wickmann / Littelfuse at chimicron.com. We have 1050 pieces of IXTN22N100L in stock available now. Submit an inquiry for IXTN22N100L or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1000 V
Current - Continuous Drain (Id) @ 25°C22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs600mOhm @ 11A, 20V
Vgs(th) (Max) @ Id5.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs270 nC @ 15 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds7050 pF @ 25 V
FET Feature-
Power Dissipation (Max)700W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageSOT-227B
Package / CaseSOT-227-4, miniBLOC
