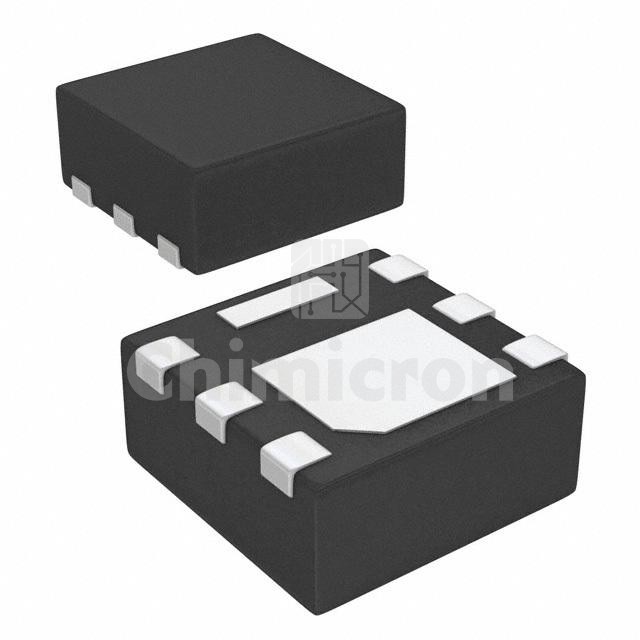

IRFHS9301TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 30V 6A/13A 6PQFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:84526
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRFHS9301TRPBF IR (Infineon Technologies) at chimicron.com. We have 84526 pieces of IRFHS9301TRPBF in stock available now. Submit an inquiry for IRFHS9301TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C6A (Ta), 13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs37mOhm @ 7.8A, 10V
Vgs(th) (Max) @ Id2.4V @ 25µA
Gate Charge (Qg) (Max) @ Vgs13 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds580 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-PQFN (2x2)
Package / Case6-PowerVDFN
