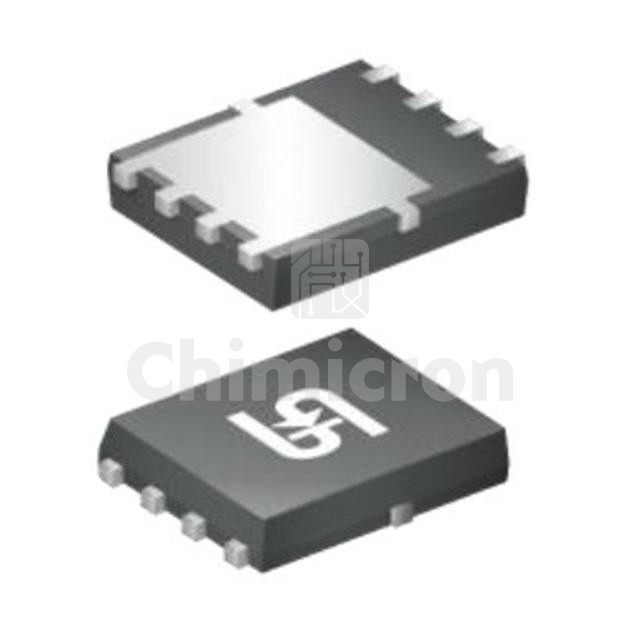

TSM120N06LCR RLG
Manufacturer: TSC (Taiwan Semiconductor)
Description: MOSFET N-CH 60V 54A 8PDFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:2625
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TSM120N06LCR RLG TSC (Taiwan Semiconductor) at chimicron.com. We have 2625 pieces of TSM120N06LCR RLG in stock available now. Submit an inquiry for TSM120N06LCR RLG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C54A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs12mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs36.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2116 pF @ 30 V
FET Feature-
Power Dissipation (Max)69W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PDFN (5x6)
Package / Case8-PowerTDFN
