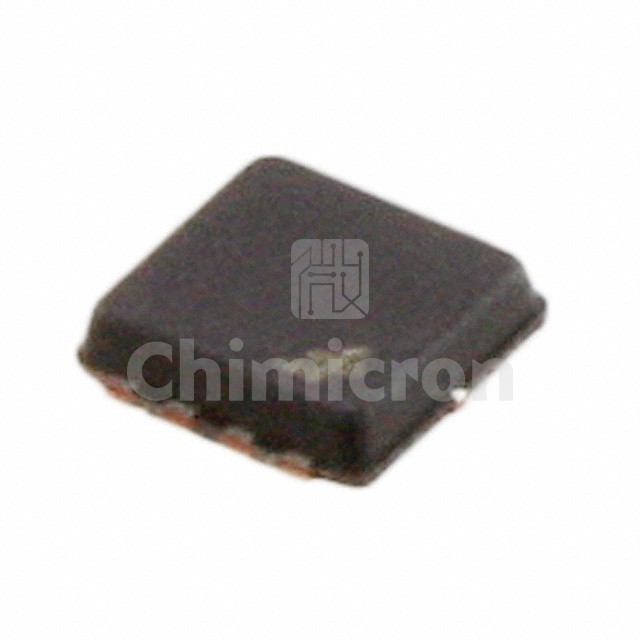

FDMC7678
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 30V 17.5A/19.5A 8MLP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:5250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMC7678 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 5250 pieces of FDMC7678 in stock available now. Submit an inquiry for FDMC7678 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C17.5A (Ta), 19.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5.3mOhm @ 17.5A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs39 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2410 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 31W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (3.3x3.3)
Package / Case8-PowerWDFN
