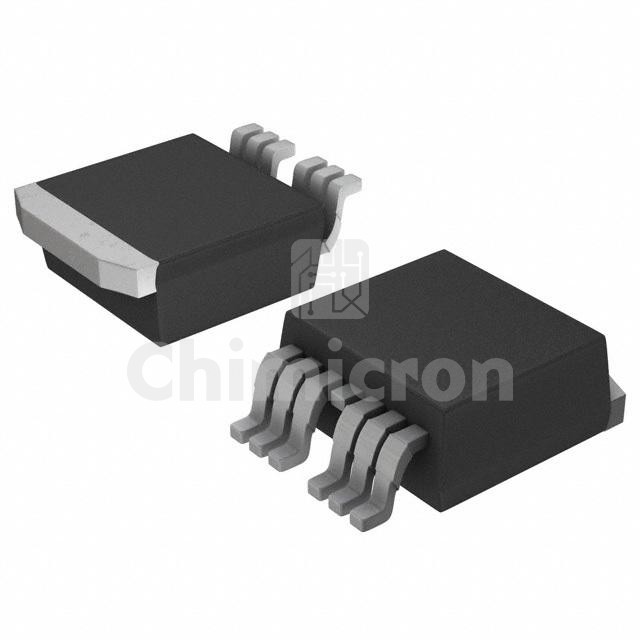

NP180N04TUK-E1-AY
Manufacturer: Renesas Electronics America
Description: MOSFET N-CH 40V 180A TO263-7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NP180N04TUK-E1-AY Renesas Electronics America at chimicron.com. We have 50000 pieces of NP180N04TUK-E1-AY in stock available now. Submit an inquiry for NP180N04TUK-E1-AY or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.05mOhm @ 90A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs297 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds15750 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.8W (Ta), 348W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-263-7
Package / CaseTO-263-7, D²Pak (6 Leads + Tab)
