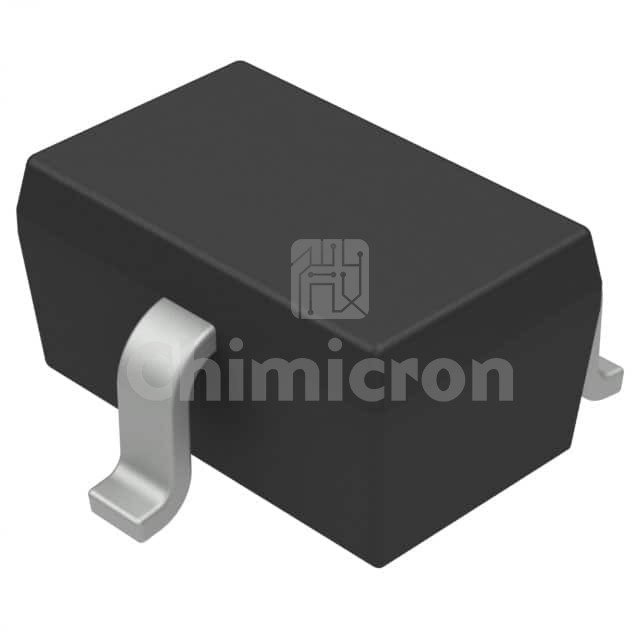

BSS138PW,115
Manufacturer: Nexperia
Description: MOSFET N-CH 60V 320MA SOT323
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, TrenchMOS™
In Stock:525000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSS138PW,115 Nexperia at chimicron.com. We have 525000 pieces of BSS138PW,115 in stock available now. Submit an inquiry for BSS138PW,115 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, TrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C320mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.6Ohm @ 300mA, 10V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.8 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds50 pF @ 10 V
FET Feature-
Power Dissipation (Max)260mW (Ta), 830mW (Tc)
Operating Temperature-55°C ~ 150°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSOT-323
Package / CaseSC-70, SOT-323
