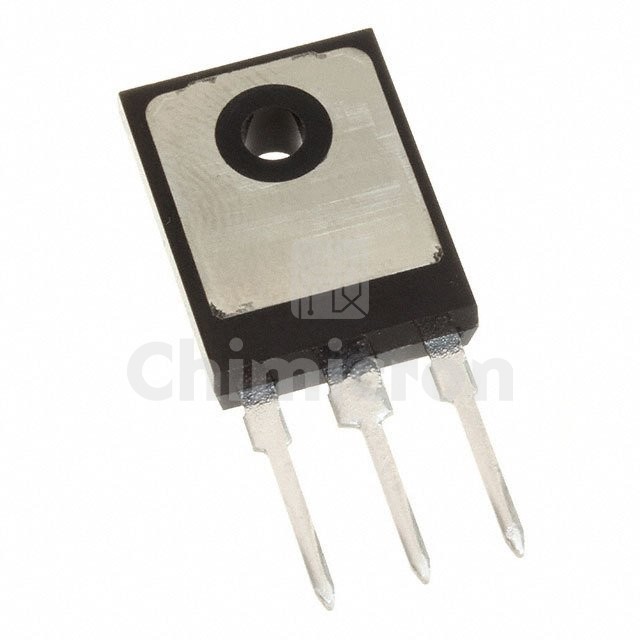

IPW60R060C7XKSA1
IPW60R060C7XKSA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 600V 35A TO247-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™ C7
In Stock:14421
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPW60R060C7XKSA1 IR (Infineon Technologies) at chimicron.com. We have 14421 pieces of IPW60R060C7XKSA1 in stock available now. Submit an inquiry for IPW60R060C7XKSA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™ C7
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs60mOhm @ 15.9A, 10V
Vgs(th) (Max) @ Id4V @ 800µA
Gate Charge (Qg) (Max) @ Vgs68 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2850 pF @ 400 V
FET Feature-
Power Dissipation (Max)162W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO247-3
Package / CaseTO-247-3
