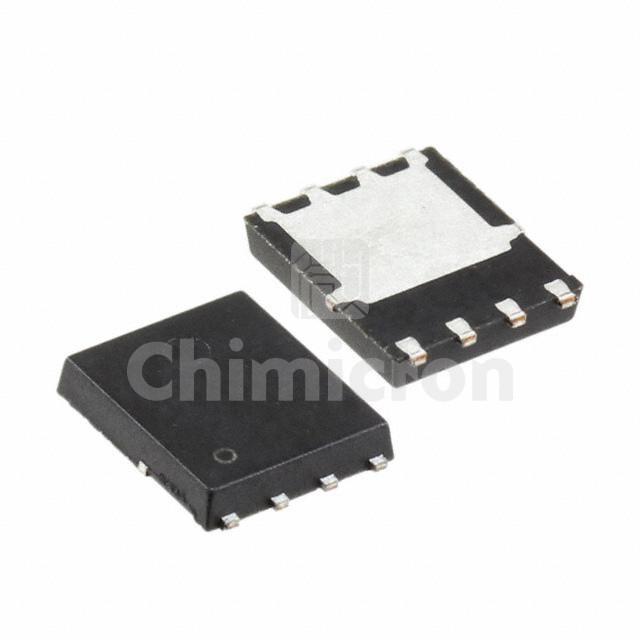

FDWS9509L-F085
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 40V 65A 8DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, PowerTrench®
In Stock:159100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDWS9509L-F085 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 159100 pieces of FDWS9509L-F085 in stock available now. Submit an inquiry for FDWS9509L-F085 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, PowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C65A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs8mOhm @ 65A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs67 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds3360 pF @ 20 V
FET Feature-
Power Dissipation (Max)107W (Tj)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5.1x6.3)
Package / Case8-PowerTDFN
