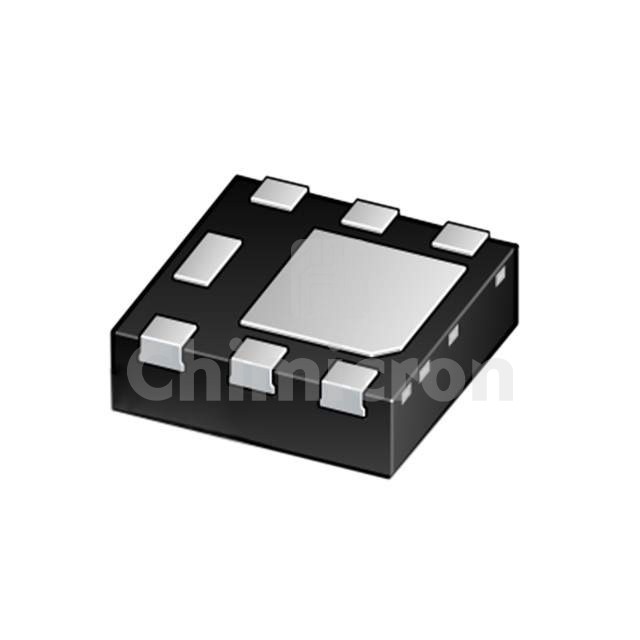

PMPB15XPAX
Manufacturer: Nexperia
Description: MOSFET P-CH 12V 8.2A DFN2020MD-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, TrenchMOS™
In Stock:262500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMPB15XPAX Nexperia at chimicron.com. We have 262500 pieces of PMPB15XPAX in stock available now. Submit an inquiry for PMPB15XPAX or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, TrenchMOS™
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C8.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs20mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs100 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds2.875 nF @ 6 V
FET Feature-
Power Dissipation (Max)1.7W (Ta), 12.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN2020MD-6
Package / Case6-UDFN Exposed Pad
