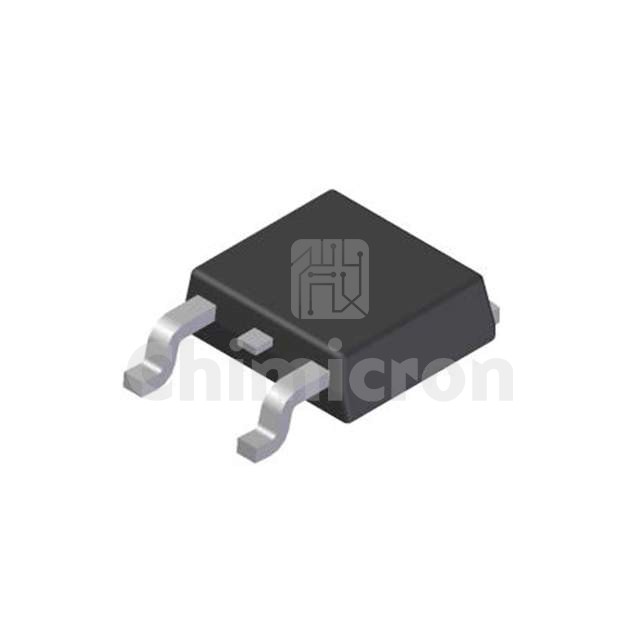

ZXMN10A09KTC
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 100V 5A TO252-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:265912
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZXMN10A09KTC Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 265912 pieces of ZXMN10A09KTC in stock available now. Submit an inquiry for ZXMN10A09KTC or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs85mOhm @ 4.6A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs26 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1313 pF @ 50 V
FET Feature-
Power Dissipation (Max)2.15W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252-3
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
