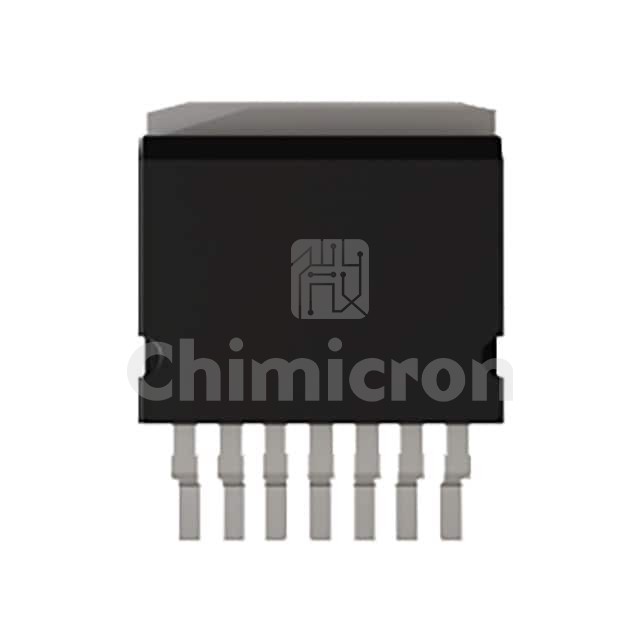

SCT3105KW7TL
Manufacturer: ROHM Semiconductor
Description: TRANS SJT N-CH 1200V 23A TO263-7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:2802
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SCT3105KW7TL ROHM Semiconductor at chimicron.com. We have 2802 pieces of SCT3105KW7TL in stock available now. Submit an inquiry for SCT3105KW7TL or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologySiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs137mOhm @ 7.6A, 18V
Vgs(th) (Max) @ Id5.6V @ 3.81mA
Gate Charge (Qg) (Max) @ Vgs51 nC @ 18 V
Vgs (Max)+22V, -4V
Input Capacitance (Ciss) (Max) @ Vds574 pF @ 800 V
FET Feature-
Power Dissipation (Max)125W
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-263-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
