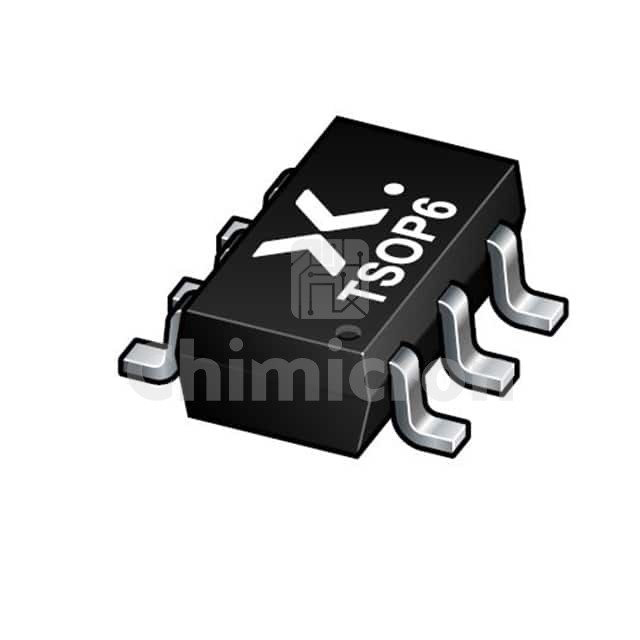

PMN30XPX
Manufacturer: Nexperia
Description: MOSFET P-CH 20V 5.2A 6TSOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:12600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMN30XPX Nexperia at chimicron.com. We have 12600 pieces of PMN30XPX in stock available now. Submit an inquiry for PMN30XPX or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C5.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs34mOhm @ 5.2A, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs23 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1575 pF @ 10 V
FET Feature-
Power Dissipation (Max)550mW (Ta), 6.25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-TSOP
Package / CaseSC-74, SOT-457
