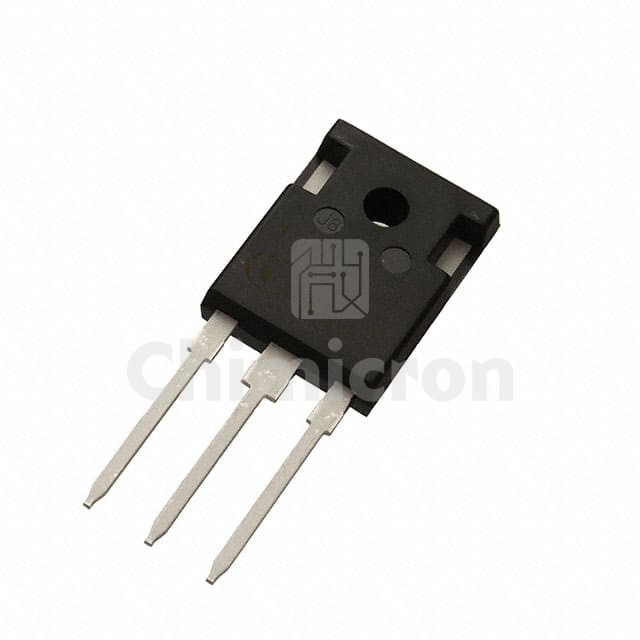

IMW120R030M1HXKSA1
Manufacturer: IR (Infineon Technologies)
Description: SICFET N-CH 1.2KV 56A TO247-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolSiC™
In Stock:1470
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IMW120R030M1HXKSA1 IR (Infineon Technologies) at chimicron.com. We have 1470 pieces of IMW120R030M1HXKSA1 in stock available now. Submit an inquiry for IMW120R030M1HXKSA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolSiC™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1.2 kV
Current - Continuous Drain (Id) @ 25°C56A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V, 18V
Rds On (Max) @ Id, Vgs40mOhm @ 25A, 18V
Vgs(th) (Max) @ Id5.7V @ 10mA
Gate Charge (Qg) (Max) @ Vgs63 nC @ 18 V
Vgs (Max)+23V, -7V
Input Capacitance (Ciss) (Max) @ Vds2.12 nF @ 800 V
FET Feature-
Power Dissipation (Max)227W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO247-3-41
Package / CaseTO-247-3
