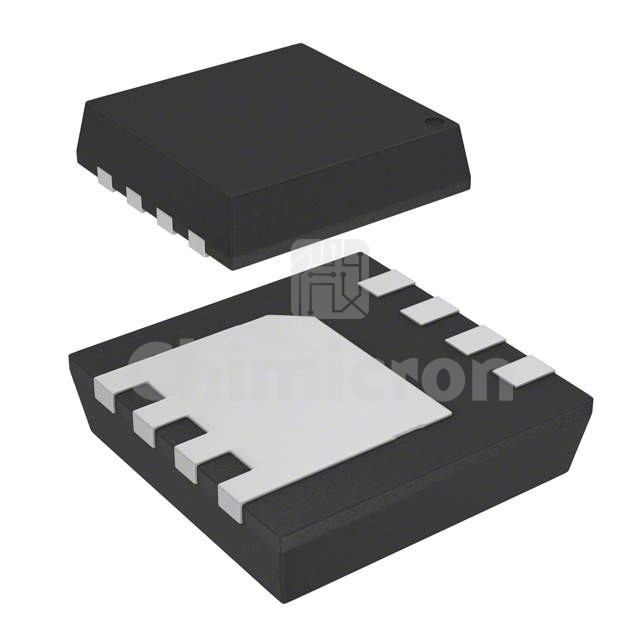

AON7405
Manufacturer: Alpha and Omega Semiconductor, Inc.
Description: MOSFET P-CH 30V 25A/50A 8DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:32818
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AON7405 Alpha and Omega Semiconductor, Inc. at chimicron.com. We have 32818 pieces of AON7405 in stock available now. Submit an inquiry for AON7405 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusLast Time Buy
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C25A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs6.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs51 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds2940 pF @ 15 V
FET Feature-
Power Dissipation (Max)6.25W (Ta), 83W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN-EP (3.3x3.3)
Package / Case8-PowerWDFN
