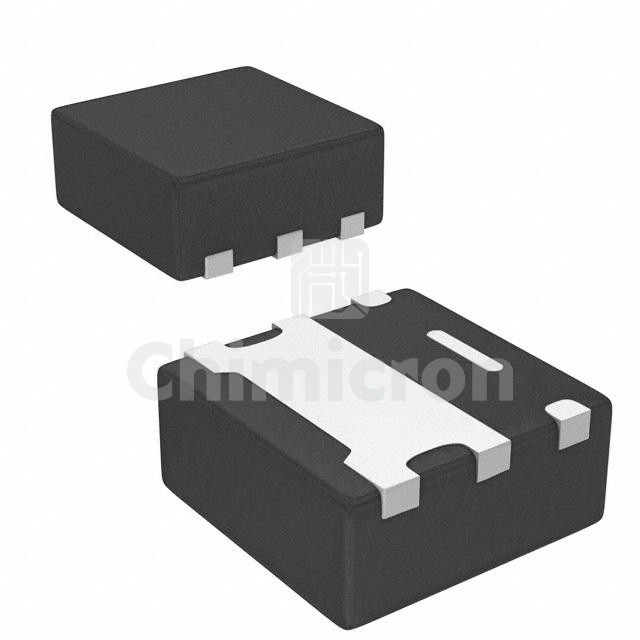

SIB441EDK-T1-GE3
Manufacturer: Vishay / Siliconix
Description: MOSFET P-CH 12V 9A PPAK SC75-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchFET®
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SIB441EDK-T1-GE3 Vishay / Siliconix at chimicron.com. We have 300000 pieces of SIB441EDK-T1-GE3 in stock available now. Submit an inquiry for SIB441EDK-T1-GE3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs25.5mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs33 nC @ 8 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds1180 pF @ 6 V
FET Feature-
Power Dissipation (Max)2.4W (Ta), 13W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® SC-75-6L Single
Package / CasePowerPAK® SC-75-6L
