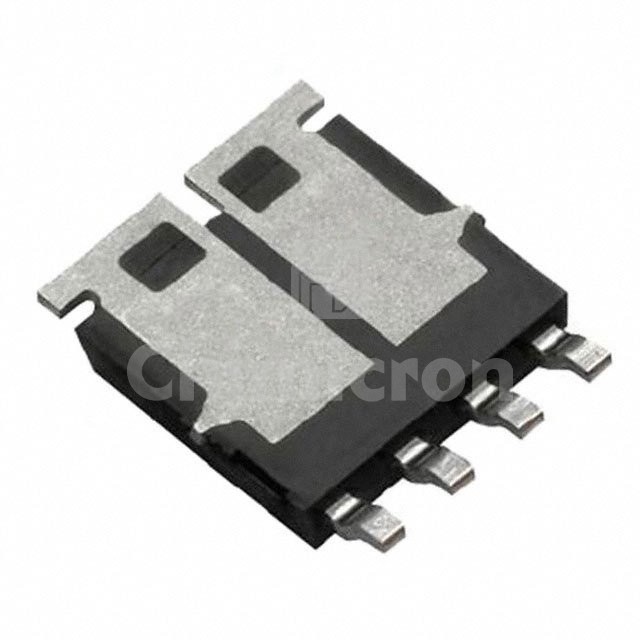

SQJ504EP-T1_GE3
Manufacturer: Vishay / Siliconix
Description: MOSFET N/P CHAN 40V POWERPAK SO-
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: Automotive, AEC-Q101, TrenchFET®
In Stock:8925
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SQJ504EP-T1_GE3 Vishay / Siliconix at chimicron.com. We have 8925 pieces of SQJ504EP-T1_GE3 in stock available now. Submit an inquiry for SQJ504EP-T1_GE3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, TrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN and P-Channel
FET FeatureStandard
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C30A (Tc)
Rds On (Max) @ Id, Vgs7.5mOhm @ 8A, 10V, 17mOhm @ 8A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs30nC @ 10V, 85nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1900pF @ 25V, 4600pF @ 25V
Power - Max34W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CasePowerPAK® SO-8 Dual
Supplier Device PackagePowerPAK® SO-8 Dual
