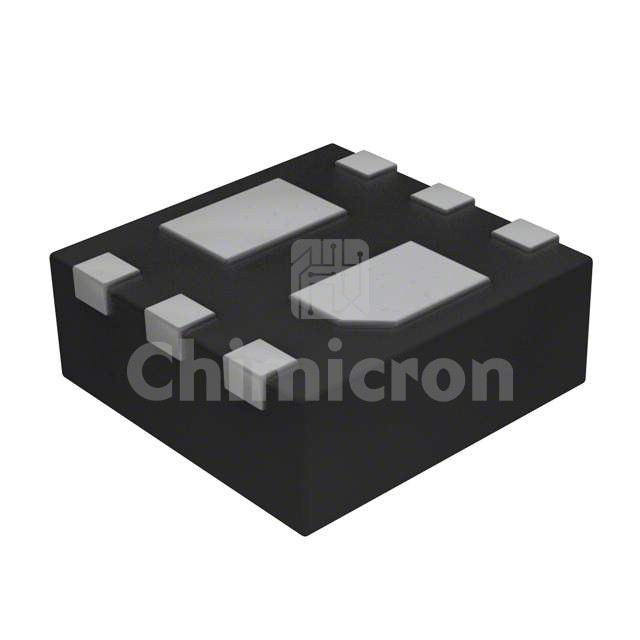

CSD87502Q2
Manufacturer: Texas
Description: MOSFET 2N-CH 30V 5A 6WSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: NexFET™
In Stock:6174
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD87502Q2 Texas at chimicron.com. We have 6174 pieces of CSD87502Q2 in stock available now. Submit an inquiry for CSD87502Q2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C5A
Rds On (Max) @ Id, Vgs32.4mOhm @ 4A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds353pF @ 15V
Power - Max2.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-WSON (2x2)
