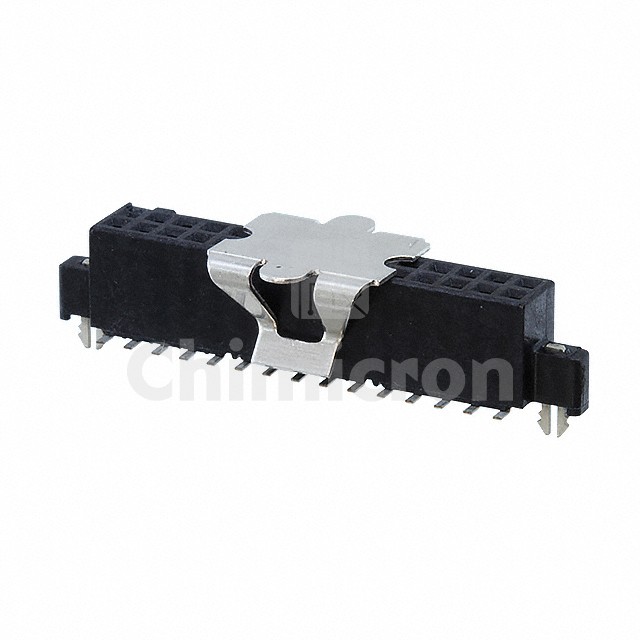

5-147384-3
Manufacturer: TE Connectivity AMP Connectors
Description: CONN RCPT 30POS 0.05 GOLD SMD
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: AMPMODU 50/50 Grid
In Stock:27161
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 5-147384-3 TE Connectivity AMP Connectors at chimicron.com. We have 27161 pieces of 5-147384-3 in stock available now. Submit an inquiry for 5-147384-3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAMPMODU 50/50 Grid
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions30
Number of Positions LoadedAll
Pitch - Mating0.050" (1.27mm)
Number of Rows2
Row Spacing - Mating0.050" (1.27mm)
Mounting TypeSurface Mount
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating30.0µin (0.76µm)
Insulation ColorBlack
Insulation Height0.187" (4.75mm)
Contact Length - Post-
Operating Temperature-65°C ~ 105°C
Material Flammability RatingUL94 V-0
Contact Finish - PostTin
Mated Stacking Heights6.35mm, 8.13mm, 9.91mm
Ingress Protection-
FeaturesBoard Lock, Pick and Place
Current Rating (Amps)0.5A per Contact
Voltage Rating30VAC
