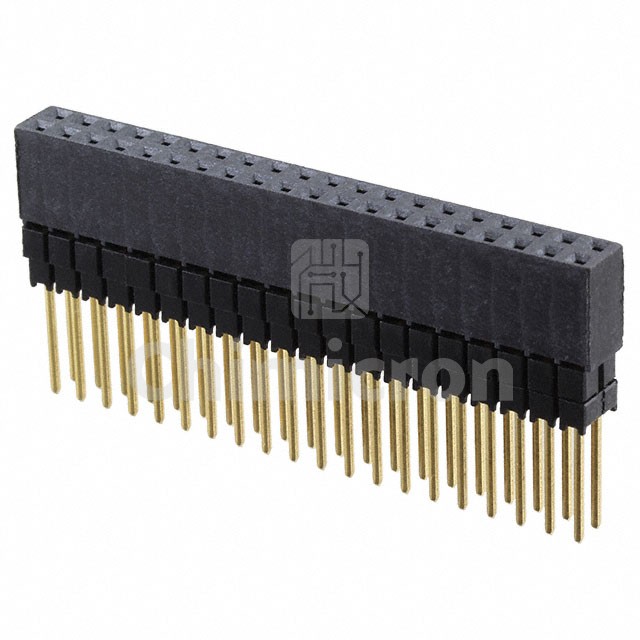

ESQ-120-24-G-D
Manufacturer: Samtec, Inc.
Description: CONN SOCKET 40POS 0.1 GOLD PCB
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: ESQ
In Stock:150
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ESQ-120-24-G-D Samtec, Inc. at chimicron.com. We have 150 pieces of ESQ-120-24-G-D in stock available now. Submit an inquiry for ESQ-120-24-G-D or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesESQ
PackageTube
Part StatusActive
Connector TypeElevated Socket
Contact TypeForked
StyleBoard to Board
Number of Positions40
Number of Positions LoadedAll
Pitch - Mating0.100" (2.54mm)
Number of Rows2
Row Spacing - Mating0.100" (2.54mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating20.0µin (0.51µm)
Insulation ColorBlack
Insulation Height0.535" (13.60mm)
Contact Length - Post0.380" (9.65mm)
Operating Temperature-55°C ~ 125°C
Material Flammability RatingUL94 V-0
Contact Finish - PostGold
Mated Stacking Heights-
Ingress Protection-
Features-
Current Rating (Amps)5.7A per Contact
Voltage Rating550VAC
