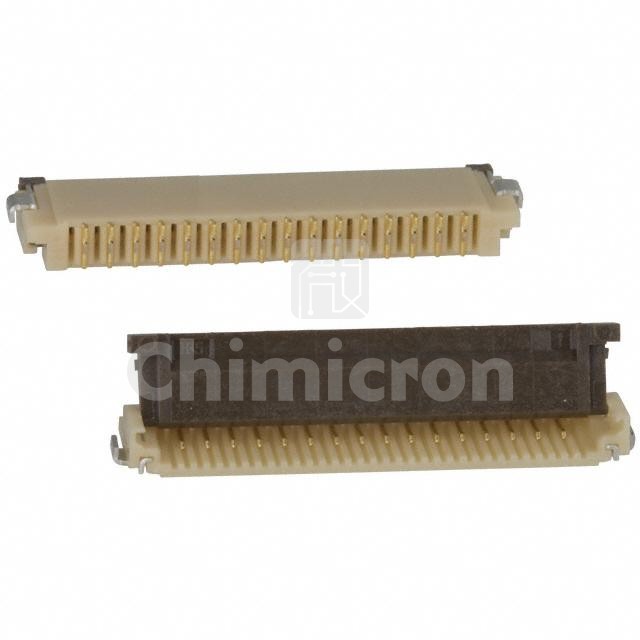

FH12-16S-1SH(55)
Manufacturer: Hirose
Description: CONN FFC BOTTOM 16POS 1.00MM R/A
Category : Connectors, Interconnects
Family: FFC, FPC (Flat Flexible) Connectors
Series: FH12
In Stock:525
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FH12-16S-1SH(55) Hirose at chimicron.com. We have 525 pieces of FH12-16S-1SH(55) in stock available now. Submit an inquiry for FH12-16S-1SH(55) or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFH12
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Bottom
Number of Positions16
Pitch0.039" (1.00mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.079" (2.00mm)
Locking FeatureFlip Lock
Cable End TypeStraight
Contact MaterialPhosphor Bronze
Contact FinishGold
Housing MaterialPolyamide (PA), Nylon
Actuator MaterialPolyphenylene Sulfide (PPS)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
Voltage Rating50V
Operating Temperature-40°C ~ 85°C
Material Flammability RatingUL94 V-0
