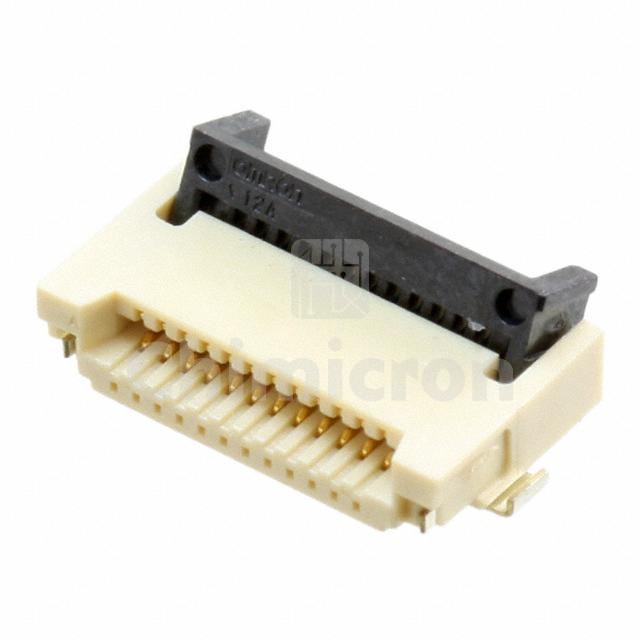

XF3M-1215-1B
Manufacturer: Omron Electronics Components
Description: CONN FFC FPC 12POS 0.50MM R/A
Category : Connectors, Interconnects
Family: FFC, FPC (Flat Flexible) Connectors
Series: XF3M
In Stock:110000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the XF3M-1215-1B Omron Electronics Components at chimicron.com. We have 110000 pieces of XF3M-1215-1B in stock available now. Submit an inquiry for XF3M-1215-1B or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesXF3M
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top and Bottom
Number of Positions12
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.079" (2.00mm)
Locking FeatureRotary Lock, Backlock
Cable End TypeTapered
Contact MaterialCopper Alloy
Contact FinishGold
Housing MaterialLiquid Crystal Polymer (LCP), Halogen Free
Actuator MaterialLiquid Crystal Polymer (LCP), Halogen Free
FeaturesSolder Retention
Voltage Rating50V
Operating Temperature-30°C ~ 85°C
Material Flammability RatingUL94 V-0
