L6747CTR
Manufacturer: STMicroelectronics
Description: IC GATE DRVR HALF-BRIDGE 8VFDFPN
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:237025
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L6747CTR STMicroelectronics at chimicron.com. We have 237025 pieces of L6747CTR in stock available now. Submit an inquiry for L6747CTR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply5V ~ 12V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)3.5A, -
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)41 V
Rise / Fall Time (Typ)-
Operating Temperature0°C ~ 125°C (TJ)
Mounting TypeSurface Mount

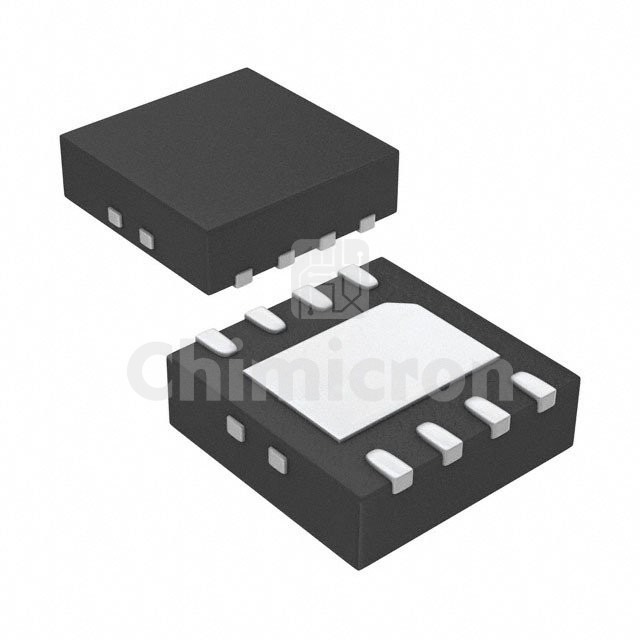

Package / Case8-VFDFN Exposed Pad
Supplier Device Package8-VFDFPN (3x3)
