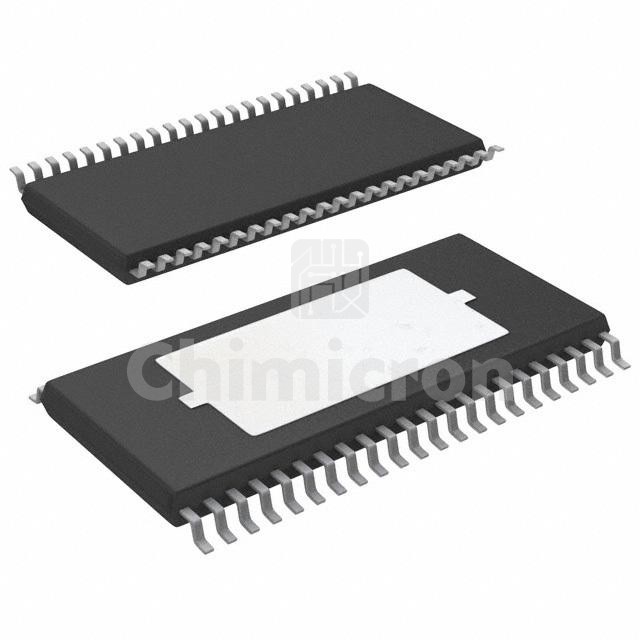

DRV8412DDWR
Manufacturer: Texas
Description: IC BRIDGE DRIVER PAR 44HTSSOP
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:8400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DRV8412DDWR Texas at chimicron.com. We have 8400 pieces of DRV8412DDWR in stock available now. Submit an inquiry for DRV8412DDWR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, Stepper Motors
InterfacePWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)110mOhm LS, 110mOhm HS
Current - Output / Channel3A
Current - Peak Output6A
Voltage - Supply10.8V ~ 13.2V
Voltage - Load0V ~ 52.5V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesStatus Flag
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case44-TSSOP (0.244", 6.20mm Width) Exposed Pad
Supplier Device Package44-HTSSOP
