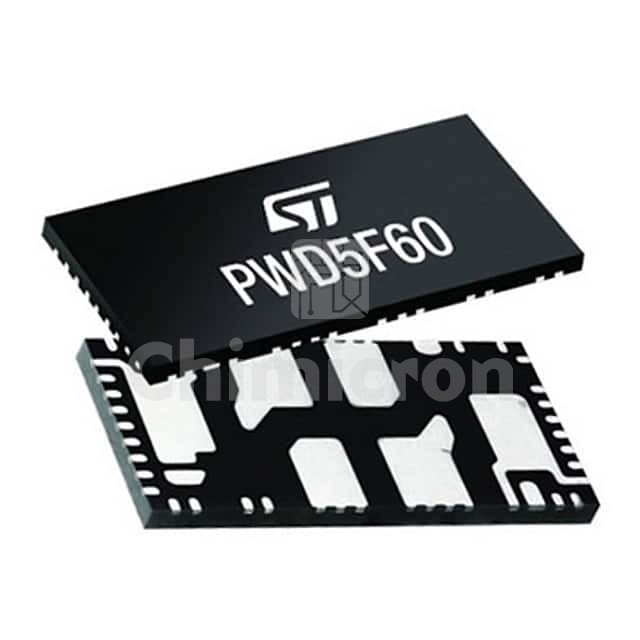

PWD5F60
Manufacturer: STMicroelectronics
Description: HIGH-DENSITY POWER DRIVER - HIGH
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PWD5F60 STMicroelectronics at chimicron.com. We have 50000 pieces of PWD5F60 in stock available now. Submit an inquiry for PWD5F60 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTray
Part StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsIndustrial
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)1.38Ohm
Current - Output / Channel3.5A
Current - Peak Output14A
Voltage - Supply10V ~ 20V
Voltage - Load-
Operating Temperature-40°C ~ 125°C (TJ)
Features-
Fault ProtectionUVLO
Mounting TypeSurface Mount
Package / Case46-PowerVFQFN
Supplier Device Package46-VFQFPN (15x7)
