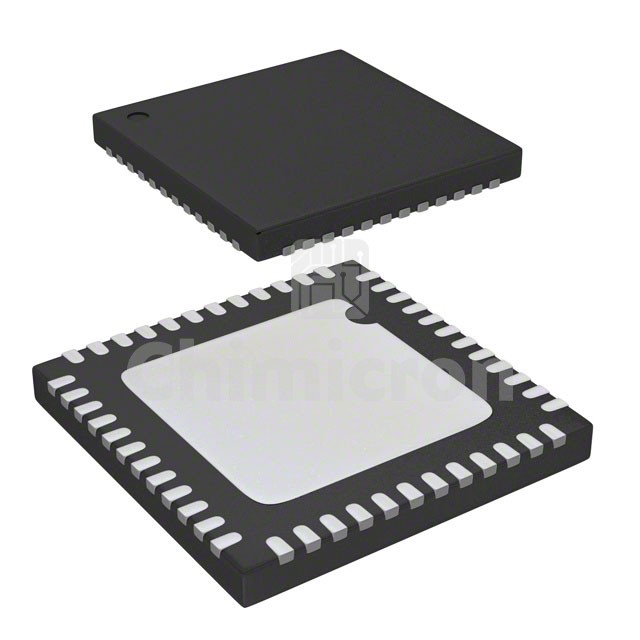

L6206QTR
Manufacturer: STMicroelectronics
Description: IC MOTOR DRIVER PAR 48QFN
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:43812
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L6206QTR STMicroelectronics at chimicron.com. We have 43812 pieces of L6206QTR in stock available now. Submit an inquiry for L6206QTR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, Stepper Motors, Voltage Regulators
InterfaceLogic
Load TypeInductive
TechnologyBCDMOS
Rds On (Typ)280mOhm LS, 340mOhm HS
Current - Output / Channel2.5A
Current - Peak Output5.6A
Voltage - Supply8V ~ 52V
Voltage - Load8V ~ 52V
Operating Temperature-25°C ~ 125°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeSurface Mount
Package / Case48-VFQFN Exposed Pad
Supplier Device Package48-VFQFPN (7x7)
