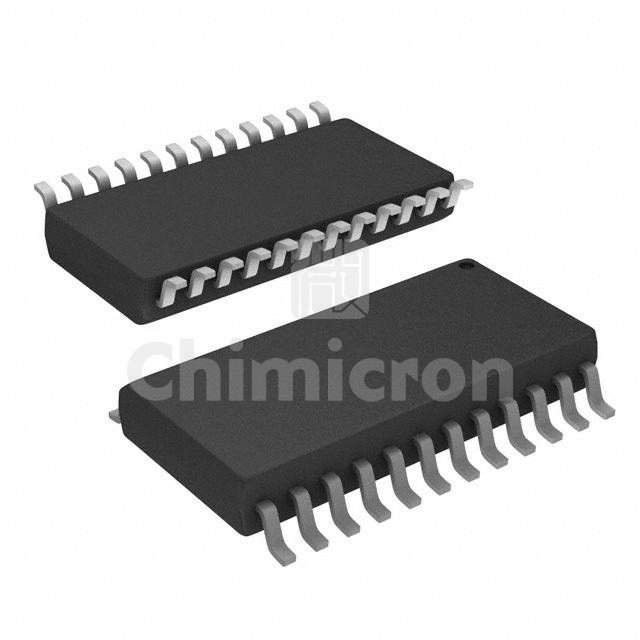

L6206D
Manufacturer: STMicroelectronics
Description: IC MOTOR DRIVER PAR 24SOIC
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:1365
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the L6206D STMicroelectronics at chimicron.com. We have 1365 pieces of L6206D in stock available now. Submit an inquiry for L6206D or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, Stepper Motors, Voltage Regulators
InterfaceLogic
Load TypeInductive
TechnologyBCDMOS
Rds On (Typ)300mOhm
Current - Output / Channel2.8A
Current - Peak Output5.6A
Voltage - Supply8V ~ 52V
Voltage - Load8V ~ 52V
Operating Temperature-25°C ~ 125°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeSurface Mount
Package / Case24-SOIC (0.295", 7.50mm Width)
Supplier Device Package24-SO
