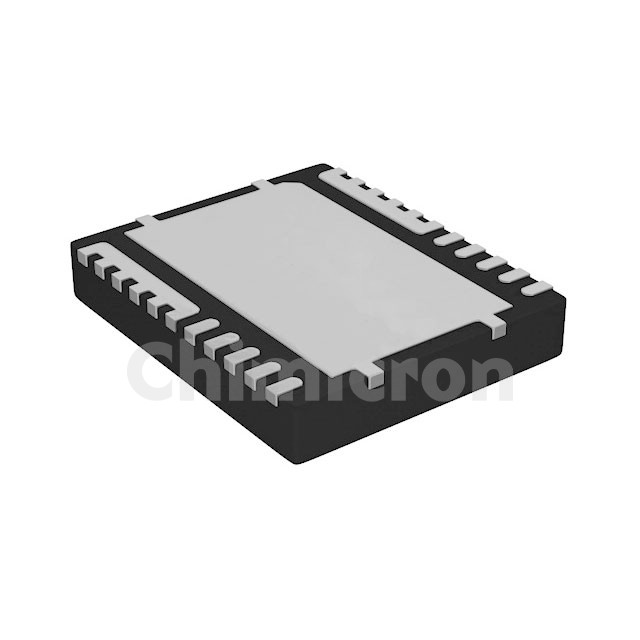

CSD95372BQ5MC
Manufacturer: Texas
Description: POWER STAGE DESIGN FOR DUAL COOL
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: NexFET™
In Stock:515000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD95372BQ5MC Texas at chimicron.com. We have 515000 pieces of CSD95372BQ5MC in stock available now. Submit an inquiry for CSD95372BQ5MC or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge
ApplicationsSynchronous Buck Converters
InterfacePWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel60A
Current - Peak Output90A
Voltage - Supply4.5V ~ 5.5V
Voltage - Load4.5V ~ 16V
Operating Temperature-55°C ~ 150°C (TJ)
FeaturesBootstrap Circuit, Status Flag
Fault ProtectionCurrent Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case12-PowerTFDFN
Supplier Device Package12-VSON (5x6)
