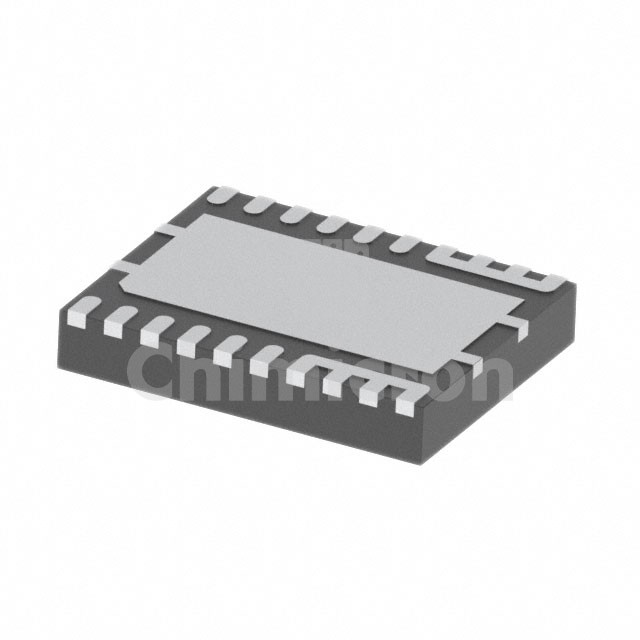

CSD95496QVM
Manufacturer: Texas
Description: POWERSTAGE
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: NexFET™
In Stock:48947
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD95496QVM Texas at chimicron.com. We have 48947 pieces of CSD95496QVM in stock available now. Submit an inquiry for CSD95496QVM or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsSynchronous Buck Converters
InterfacePWM
Load TypeInductive, Capacitive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel40A
Current - Peak Output60A
Voltage - Supply4.5V ~ 5.5V
Voltage - Load4.5V ~ 16V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionShoot-Through
Mounting TypeSurface Mount
Package / Case18-PowerTFDFN
Supplier Device Package18-VSON (5x4)
