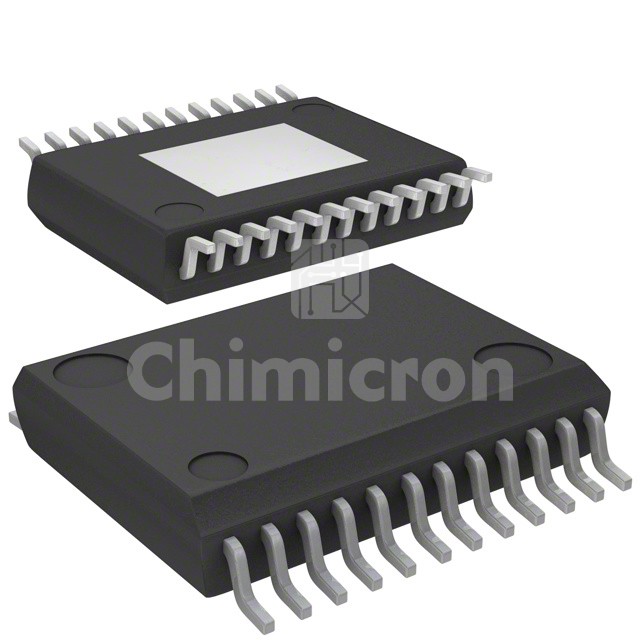

NCV7723DQBR2G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: 6 CHANNEL HALF-BRIDGE DRIVER
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: Automotive, AEC-Q100
In Stock:6048
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NCV7723DQBR2G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 6048 pieces of NCV7723DQBR2G in stock available now. Submit an inquiry for NCV7723DQBR2G or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsDC Motors, General Purpose
InterfaceLogic, PWM, SPI
Load TypeCapacitive and Resistive
TechnologyNMOS
Rds On (Typ)800mOhm LS, 800mOhm HS
Current - Output / Channel500mA
Current - Peak Output1.1A
Voltage - Supply3.15V ~ 5.25V
Voltage - Load3.15V ~ 5.25V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesCharge Pump
Fault ProtectionOver Current, Over Temperature, Over Voltage, UVLO
Mounting TypeSurface Mount
Package / Case24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package24-SSOP
