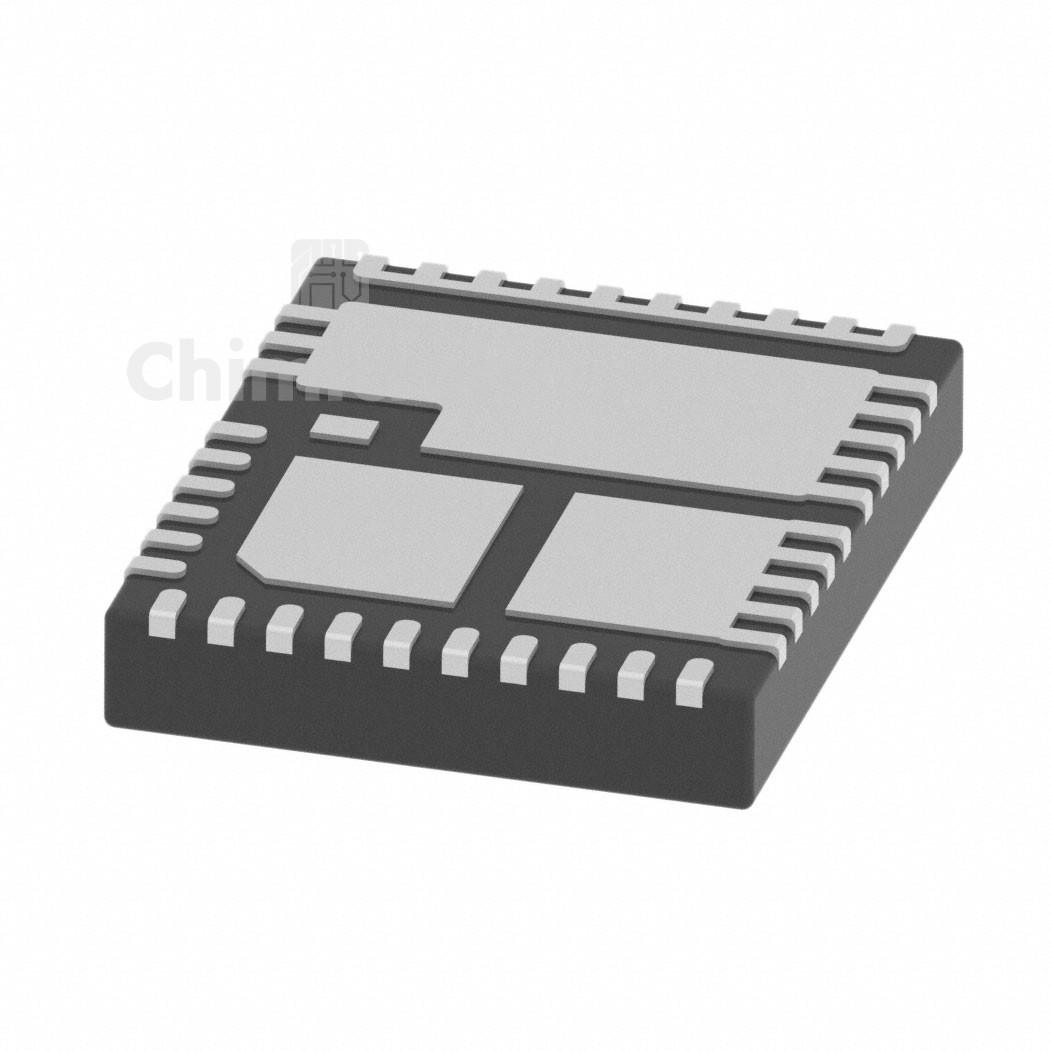

CSD95480RWJ
Manufacturer: Texas
Description: SYNCHRONOUS BUCK
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: NexFET™
In Stock:70875
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD95480RWJ Texas at chimicron.com. We have 70875 pieces of CSD95480RWJ in stock available now. Submit an inquiry for CSD95480RWJ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge
ApplicationsSynchronous Buck Converters
InterfacePWM
Load TypeInductive, Capacitive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel70A
Current - Peak Output90A
Voltage - Supply4.5V ~ 5.5V
Voltage - Load4.5V ~ 16V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionShoot-Through
Mounting TypeSurface Mount
Package / Case41-PowerTFQFN
Supplier Device Package41-VQFN-CLIP (5x6)
