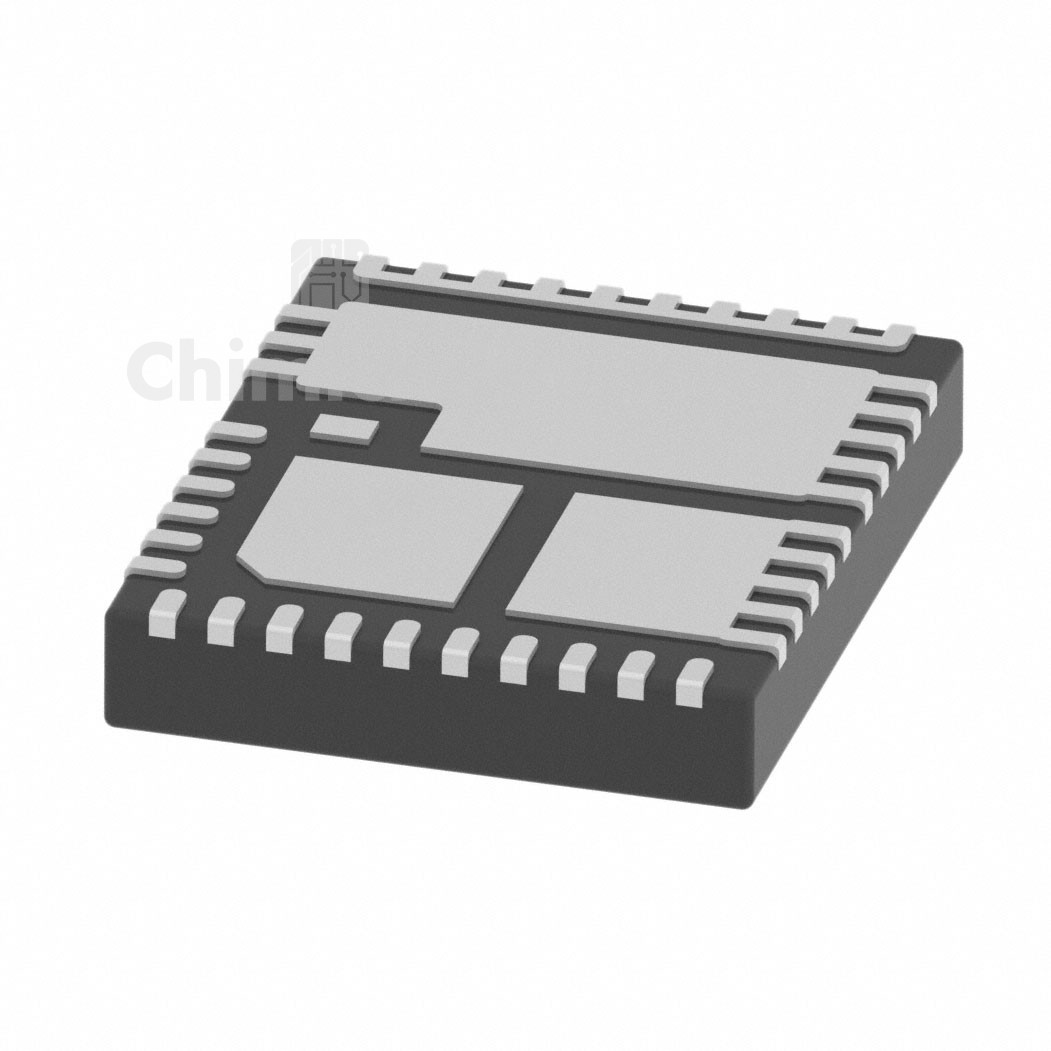

CSD95485RWJT
Manufacturer: Texas
Description: SYNCHRONOUS BUCK
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: NexFET™
In Stock:2100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD95485RWJT Texas at chimicron.com. We have 2100 pieces of CSD95485RWJT in stock available now. Submit an inquiry for CSD95485RWJT or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationHalf Bridge
ApplicationsDC-DC Converters, Synchronous Buck Converter
InterfaceLogic, PWM
Load TypeInductive, Capacitive, Resistive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel75A
Current - Peak Output105A
Voltage - Supply4.5V ~ 5.5V
Voltage - Load5.5V (Max)
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit, Diode Emulation
Fault ProtectionShoot-Through
Mounting TypeSurface Mount
Package / Case41-PowerTFQFN
Supplier Device Package41-VQFN-CLIP (5x6)
