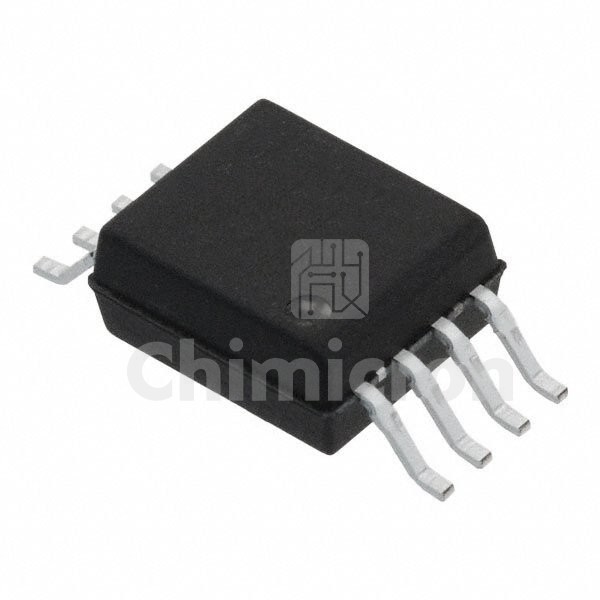

ACPL-K43T-560E
Manufacturer: Broadcom
Description: OPTOISOLATOR 5KV TRANSISTOR
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: Automotive, AEC-Q100, R²Coupler™
In Stock:9000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ACPL-K43T-560E Broadcom at chimicron.com. We have 9000 pieces of ACPL-K43T-560E in stock available now. Submit an inquiry for ACPL-K43T-560E or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100, R²Coupler™
PackageTape & Reel (TR)
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)32% @ 10mA
Current Transfer Ratio (Max)100% @ 10mA
Turn On / Turn Off Time (Typ)150ns, 500ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.268", 6.81mm Width)
Supplier Device Package8-SO
