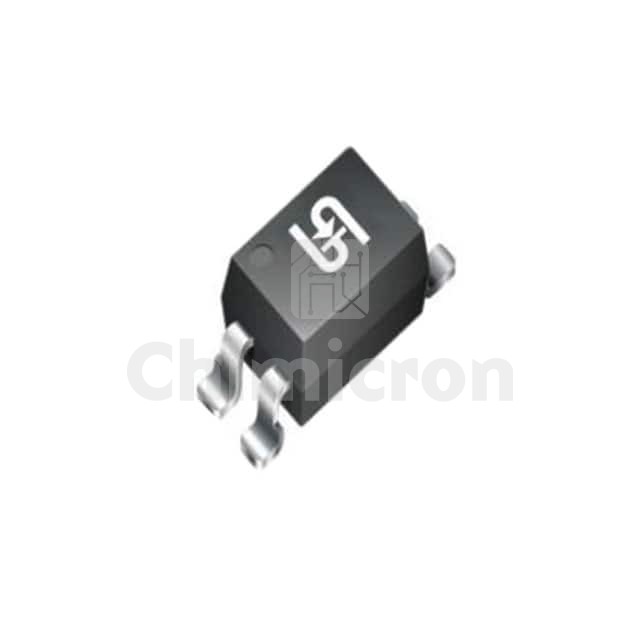

TPC817S1B RAG
Manufacturer: TSC (Taiwan Semiconductor)
Description: OPTOISO 5KV TRANS 4SOP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: TPC817
In Stock:600100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPC817S1B RAG TSC (Taiwan Semiconductor) at chimicron.com. We have 600100 pieces of TPC817S1B RAG in stock available now. Submit an inquiry for TPC817S1B RAG or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTPC817
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusLast Time Buy
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)130% @ 5mA
Current Transfer Ratio (Max)260% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)200mV
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SOP
