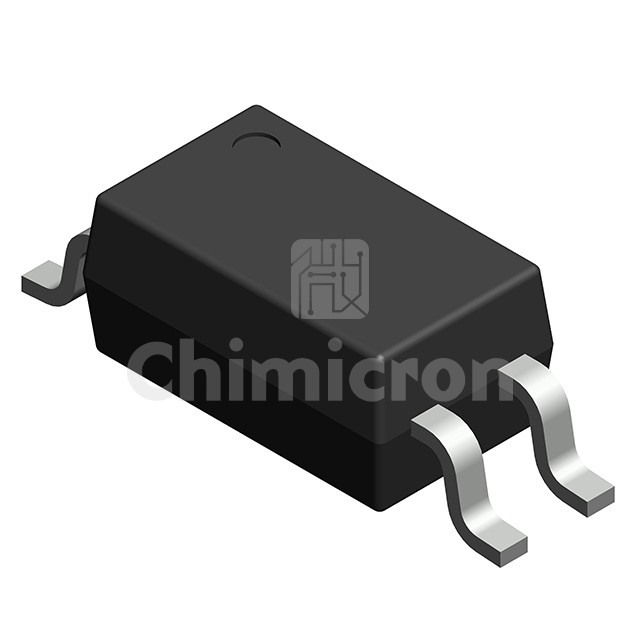

PS2802-1-F3-A
PS2802-1-F3-A

Manufacturer: Renesas Electronics America

Description: OPTOISOLATOR 2.5KV DARL 4SOIC
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: NEPOC
In Stock:150000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PS2802-1-F3-A Renesas Electronics America at chimicron.com. We have 150000 pieces of PS2802-1-F3-A in stock available now. Submit an inquiry for PS2802-1-F3-A or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNEPOC
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)200% @ 1mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)200µs, 200µs
Input TypeDC
Output TypeDarlington
Voltage - Output (Max)40V
Current - Output / Channel90mA
Voltage - Forward (Vf) (Typ)1.1V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)1V
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SOIC (0.173", 4.40mm Width)
Supplier Device Package4-SSOP
