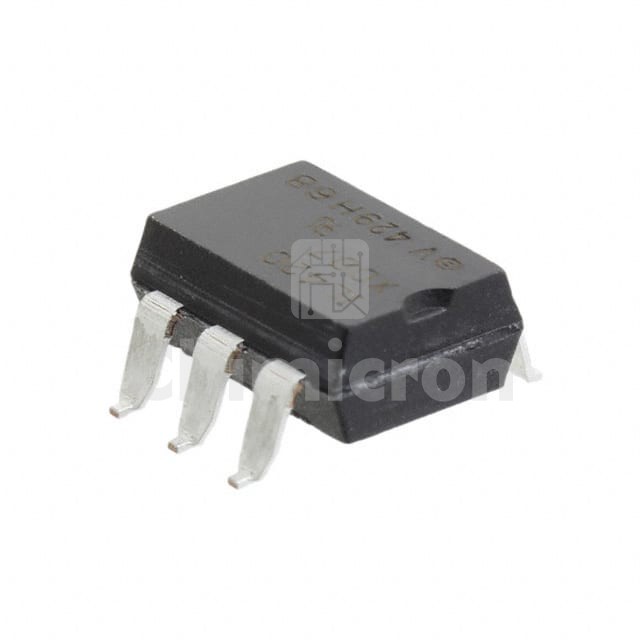

CNY17-3X009
Manufacturer: Vishay / Semiconductor - Opto Division
Description: OPTOISO 5KV TRANS W/BASE 6SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CNY17-3X009 Vishay / Semiconductor - Opto Division at chimicron.com. We have 100000 pieces of CNY17-3X009 in stock available now. Submit an inquiry for CNY17-3X009 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)100% @ 10mA
Current Transfer Ratio (Max)200% @ 10mA
Turn On / Turn Off Time (Typ)3µs, 2.3µs
Rise / Fall Time (Typ)2µs, 2µs
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)70V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.39V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 110°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
