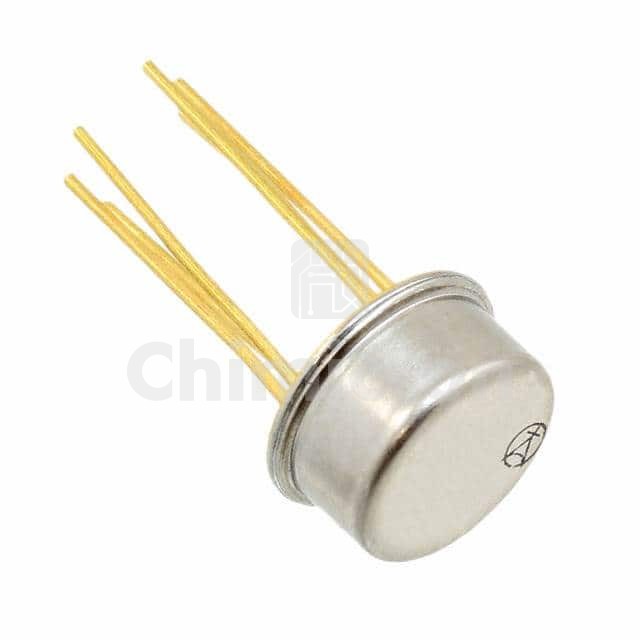

JANTX4N47
Manufacturer: TT Electronics / Optek Technology
Description: OPTOISO 1KV TRANS W/BASE TO78-6
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the JANTX4N47 TT Electronics / Optek Technology at chimicron.com. We have 100000 pieces of JANTX4N47 in stock available now. Submit an inquiry for JANTX4N47 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
Number of Channels1
Voltage - Isolation1000VDC
Current Transfer Ratio (Min)50% @ 1mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)20µs, 20µs (Max)
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)40V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.5V (Max)
Current - DC Forward (If) (Max)40 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-78-6 Metal Can
Supplier Device PackageTO-78-6
